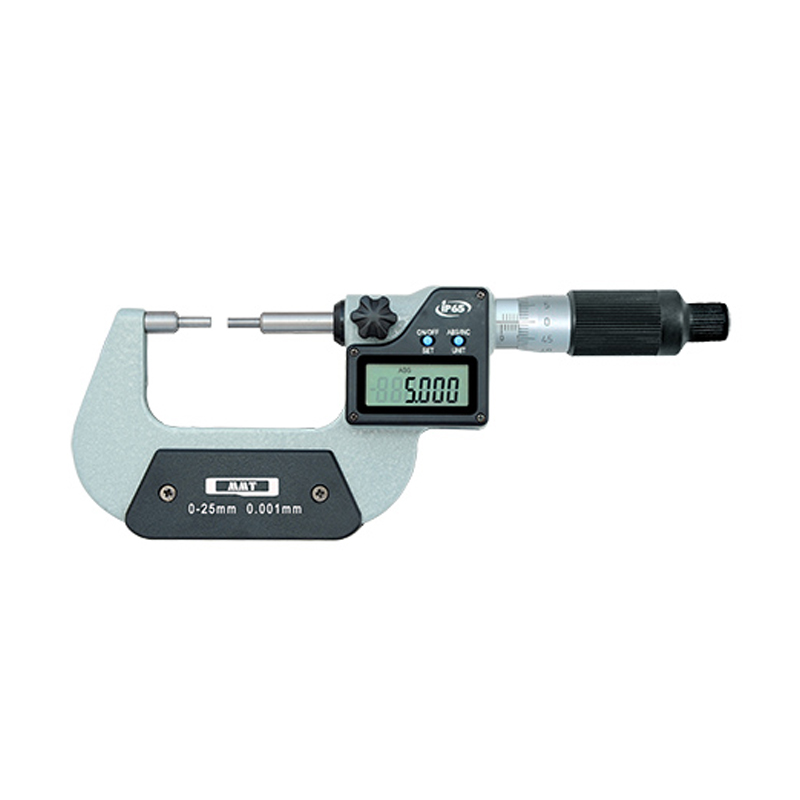

产品描述
符合标准:DIN40050/IEC529。

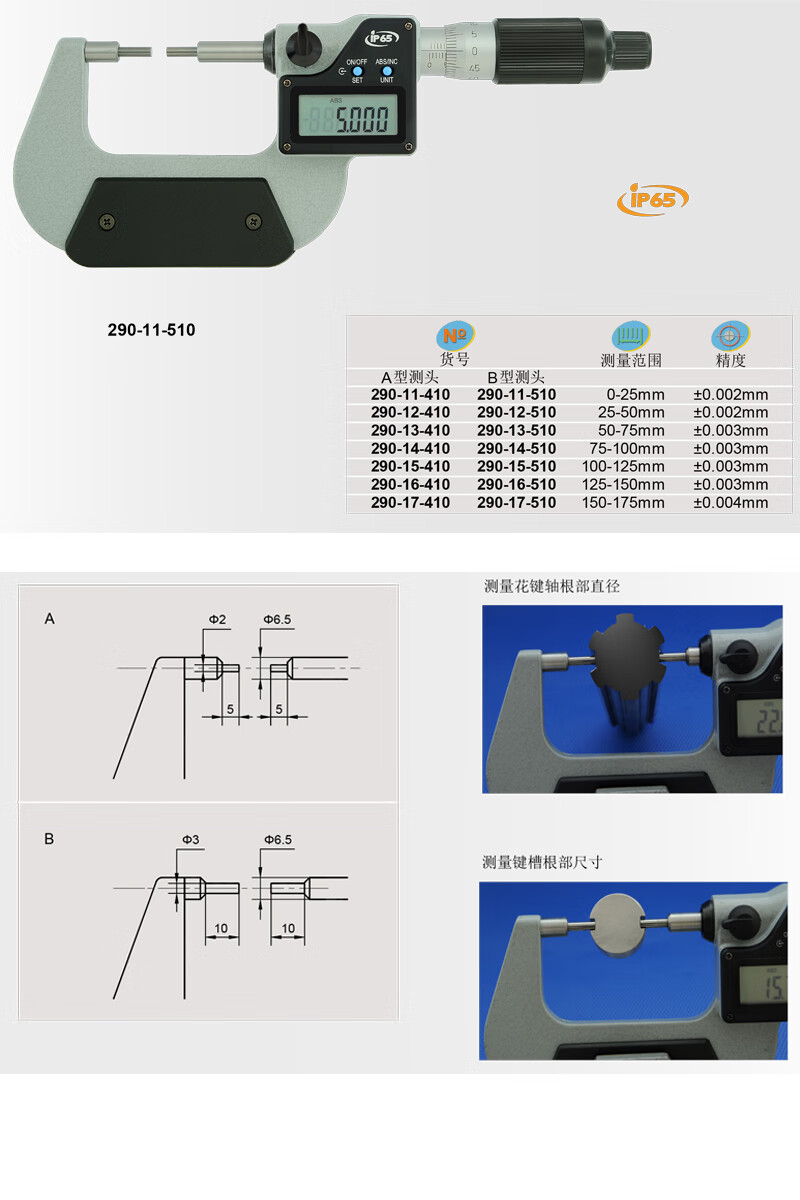

小测量面适用于花键、键槽等零件的测量。
硬质合金测量面。
数显系统与133-XX-410电子外径千分尺相同。
选型表
商品名称 | 测量范围 | 精度 | 备注 | 促销价 |
290-11-410 | 0-25mm | ±0.002mm | A型测头 | ¥697 |
290-11-510 | 0-25mm | ±0.002mm | B型测头 | ¥697 |
290-12-410 | 25-50mm | ±0.002mm | A型测头 | ¥744 |
290-12-510 | 25-50mm | ±0.002mm | B型测头 | ¥744 |
290-13-410 | 50-75mm | ±0.003mm | A型测头 | ¥792 |
290-13-510 | 50-75mm | ±0.003mm | B型测头 | ¥792 |
290-14-410 | 75-100mm | ±0.003mm | A型测头 | ¥839 |
290-14-510 | 75-100mm | ±0.003mm | B型测头 | ¥839 |
290-15-410 | 100-125mm | ±0.003mm | A型测头 | ¥884 |
290-15-510 | 100-125mm | ±0.003mm | B型测头 | ¥884 |
290-16-410 | 125-175mm | ±0.003mm | A型测头 | ¥916 |
290-16-510 | 125-715mm | ±0.003mm | B型测头 | ¥916 |
290-17-410 | 150-175mm | ±0.004mm | A型测头 | ¥964 |
290-17-510 | 150-175mm | ±0.004mm | B型测头 | ¥964 |
