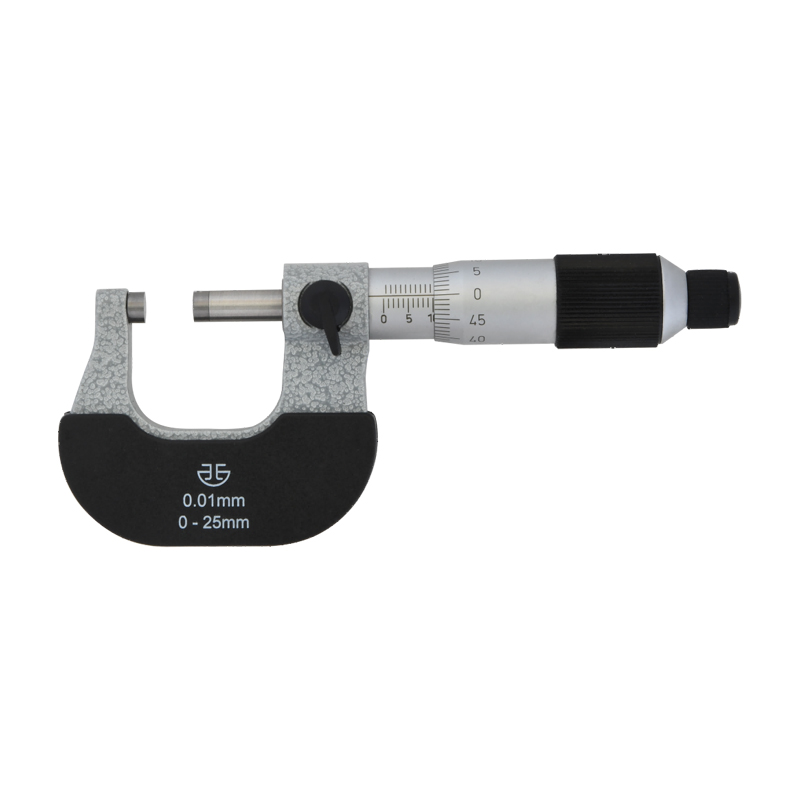

产品概述
1、测量面为镶合金测量面。
2、采用不导磁材料,适用于有磁场的测量环境。
3、棘轮套测力。
测量参数
货号 | 测量范围 | 精度 | 分辨力 |
108-01-030 | 0-25mm | 0.004mm | 0.01mm |
108-02-030 | 25-50mm | 0.004mm | 0.01mm |
108-03-030 | 50-75mm | 0.005mm | 0.01mm |
108-04-030 | 75-100mm | 0.005mm | 0.01mm |

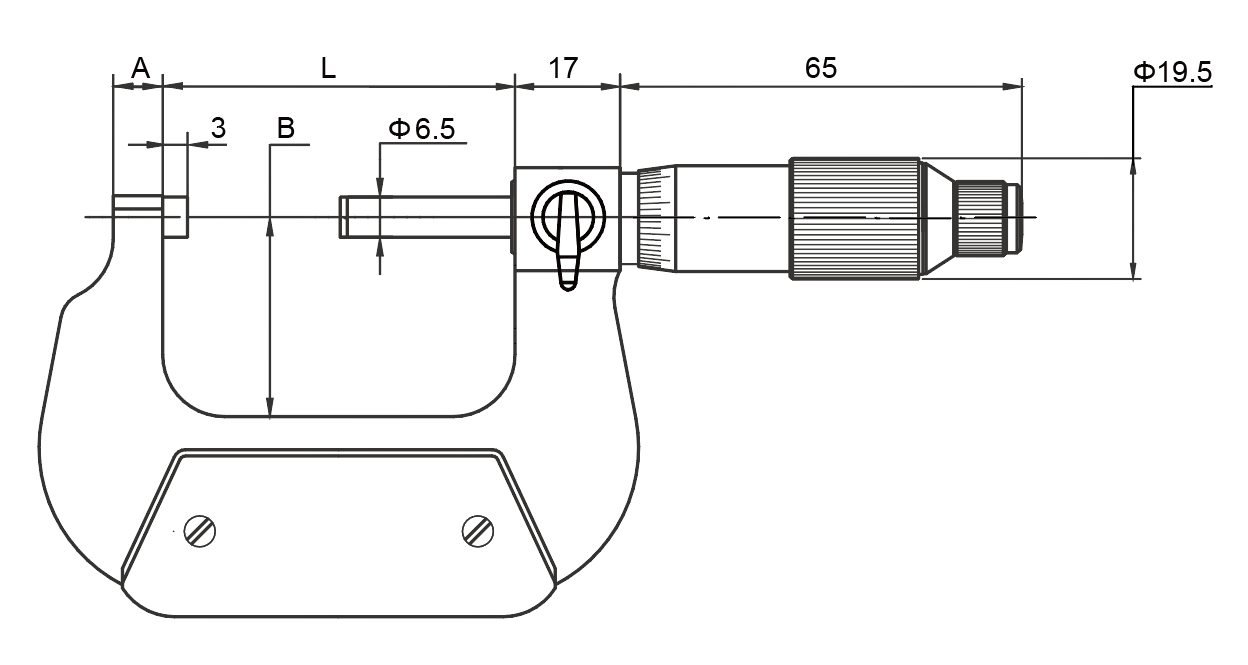

尺寸图
主要尺寸
测量范围 | A | B | L |
0-25mm | 6mm | 24mm | 32mm |
25-50mm | 8mm | 32mm | 57mm |
50-75mm | 8mm | 45mm | 82mm |
75-100mm | 8mm | 57mm | 107mm |
