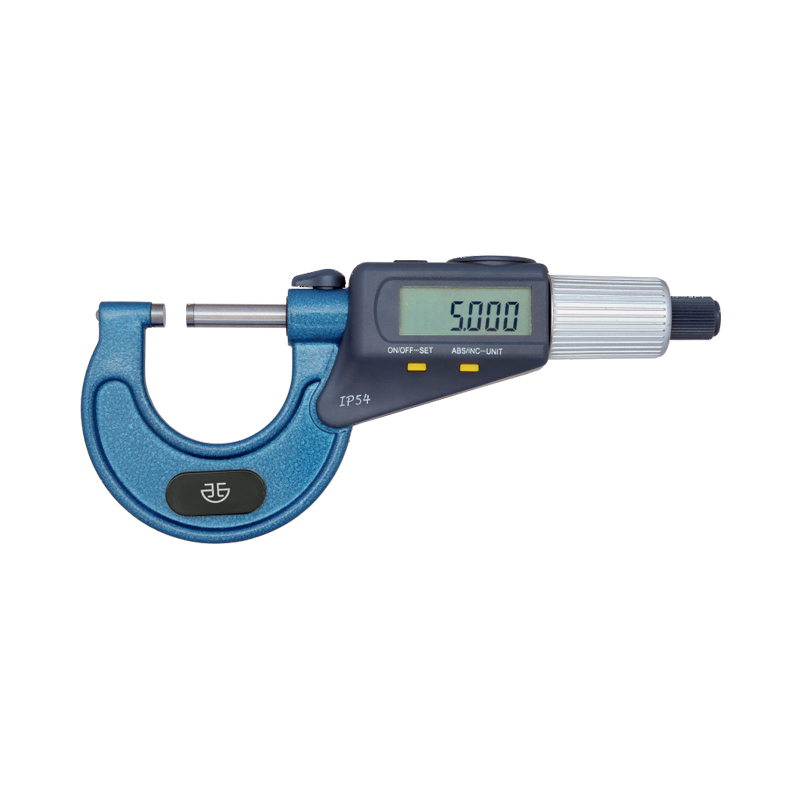

产品概述
1、测量行程大。
2、方便单手使用。
3、IP54防护等级。
4、前后双面显示屏,可通过按键调整显示屏显示方向,便于左、右手使用和任意测量状态下的读数。
5、通电后,显示值即为绝对测量的起始值。
6、硬质合金测量面。
7、棘轮套测力。
8、微分头行程:30mm。
测量参数
货号 | 测量范围 | 精度 | 分辨力 |
193-01-630 | 0-30mm | ±0.002mm | 0.001mm |
193-02-630 | 20-50mm | ±0.002mm | 0.001mm |
193-03-630 | 45-75mm | ±0.003mm | 0.001mm |
193-04-630 | 95-125mm | ±0.003mm | 0.001mm |
193-05-630 | 120-150mm | ±0.003mm | 0.001mm |
193-06-630 | 145-175mm | ±0.003mm | 0.001mm |
193-07-630 | 170-200mm | ±0.004mm | 0.001mm |
193-08-630 | 195-225mm | ±0.004mm | 0.001mm |
193-09-630 | 220-250mm | ±0.004mm | 0.001mm |
193-10-630 | 245-275mm | ±0.004mm | 0.001mm |
193-11-630 | 270-300mm | ±0.005mm | 0.001mm |
193-12-630 | 275-300mm | ±0.005mm | 0.001mm |

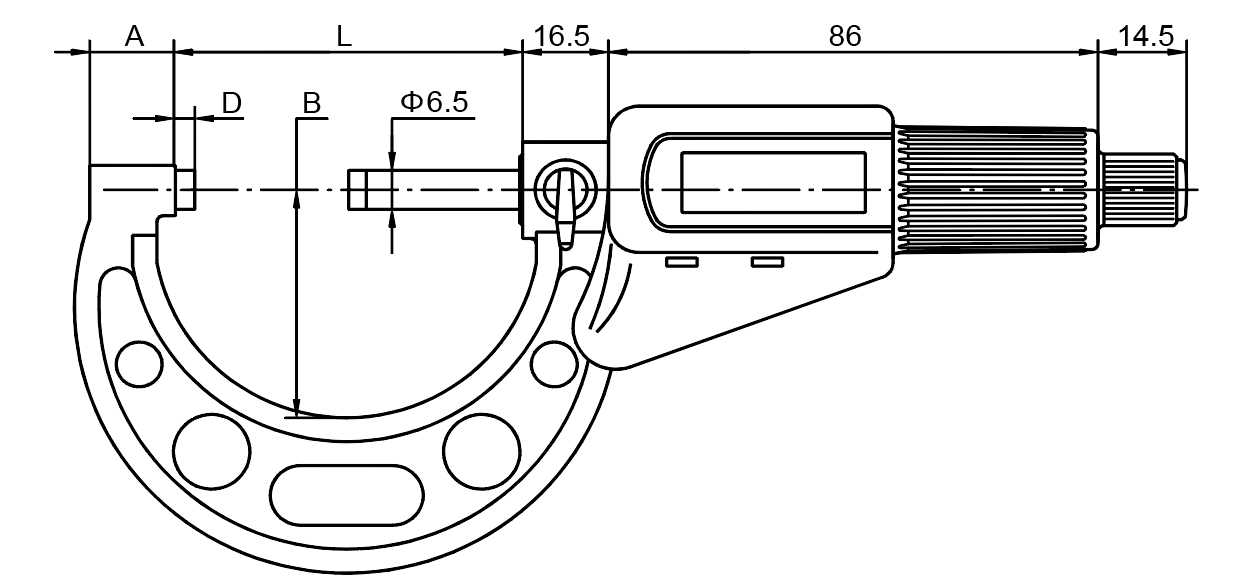

尺寸图
主要尺寸
测量范围 | A | B | L | D |
0-30mm | 9mm | 35mm | 37mm | 3.0mm |
20-50mm | 14mm | 38mm | 57mm | 3.0mm |
45-75mm | 15mm | 49mm | 82mm | 3.0mm |
95-125mm | 15mm | 60mm | 107mm | 3.0mm |
120-150mm | 16mm | 73mm | 133mm | 3.0mm |
145-175mm | 16mm | 85mm | 158mm | 3.0mm |
170-200mm | 19mm | 104mm | 183mm | 5.5mm |
195-225mm | 19mm | 117mm | 209mm | 5.5mm |
220-250mm | 19mm | 130mm | 234mm | 5.5mm |
245-275mm | 19mm | 142mm | 260mm | 5.5mm |
270-300mm | 19mm | 155mm | 285mm | 5.5mm |
275-300mm | 19mm | 168mm | 310mm | 5.5mm |
功能
开/关键 | √ |
绝对/相对测量模式转换 | √ |
公制/英制测量模式转换 | √ |
绝对测量初始值设置键 | √ |
显示方向调整键 | √ |
电池型号 | CR2032 |
自动断电 | √ |
RS232输出接口 | √ |
接口电缆(选配) | P1101 |
