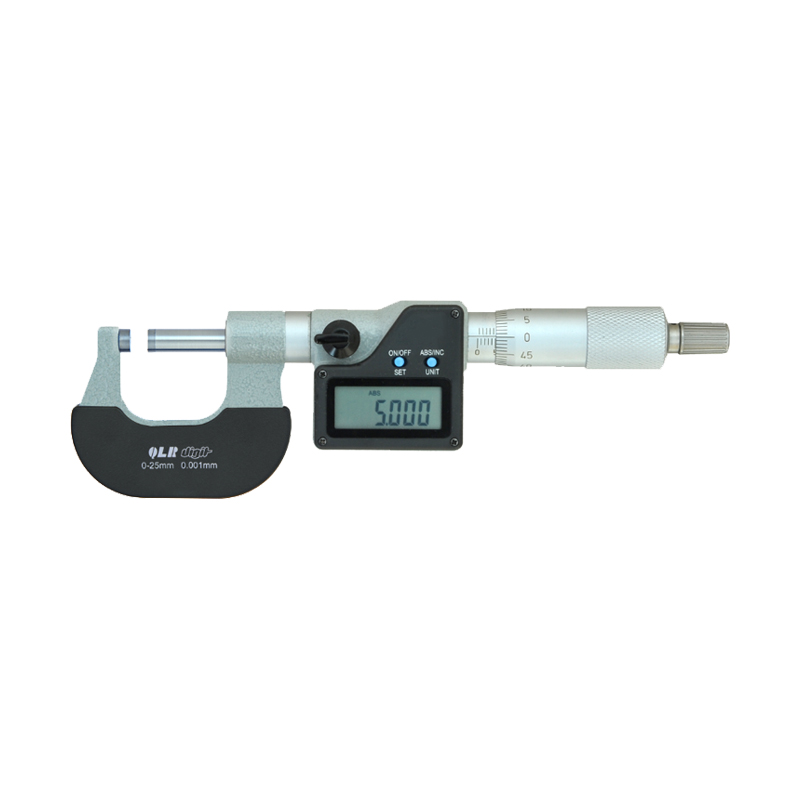

产品概述
直进式结构减少了因旋转而产生的扭力造成的误差,适合测量软性材料的厚度。
测量参数
货号 | 测量范围 | 精度 | 分辨力 |
153-01-450 | 0-25mm | ±0.002mm | 0.001mm |
153-02-450 | 25-50mm | ±0.002mm | 0.001mm |
153-03-450 | 50-75mm | ±0.003mm | 0.001mm |
153-04-450 | 75-100mm | ±0.003mm | 0.001mm |
尺寸图
主要尺寸
测量范围 | C | L | B | D |
0-25mm | 24mm | 32mm | 6mm | 3.0mm |
25-50mm | 32mm | 57mm | 8mm | 3.0mm |
50-75mm | 45mm | 82mm | 8mm | 3.0mm |
75-100mm | 57mm | 107mm | 8mm | 3.0mm |
