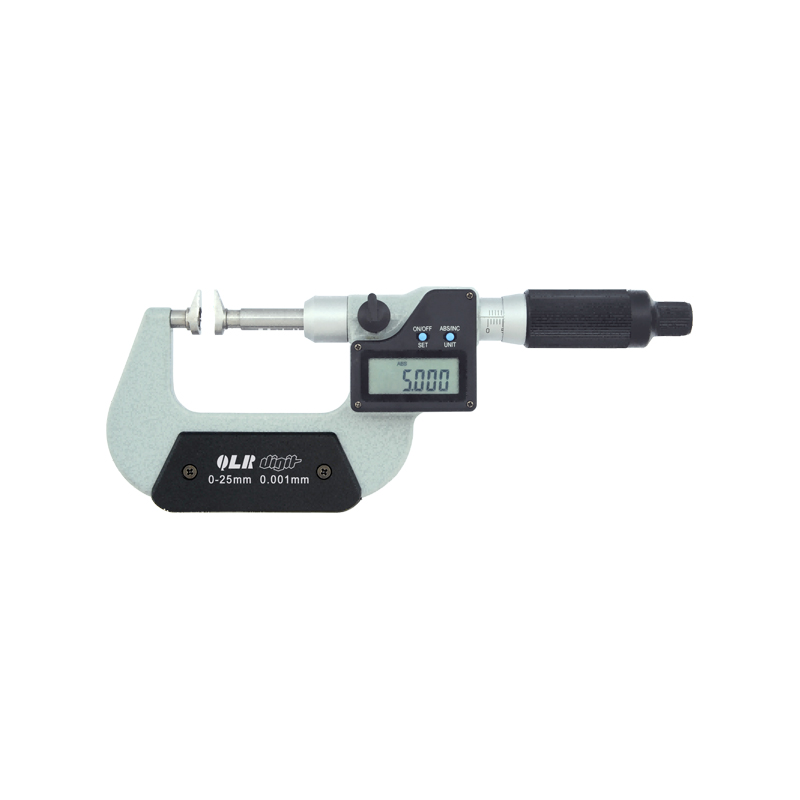

产品概述
1、数显系统与142-XX-456电子外径千分尺相同。
2、整体测力。
测量参数
货号 | 测量范围 | 精度 | D | d |
291-01-450 | 0-25mm | 0.004mm | R10mm | Φ8mm |
291-02-450 | 25-50mm | 0.004mm | R10mm | Φ8mm |
291-03-450 | 50-75mm | 0.005mm | R10mm | Φ8mm |
291-04-450 | 75-100mm | 0.005mm | R10mm | Φ8mm |
291-05-450 | 100-125mm | 0.006mm | R15mm | Φ12mm |
291-06-450 | 125-150mm | 0.006mm | R15mm | Φ12mm |
291-07-450 | 150-175mm | 0.007mm | R15mm | Φ12mm |
291-08-450 | 175-200mm | 0.007mm | R15mm | Φ12mm |
尺寸图
