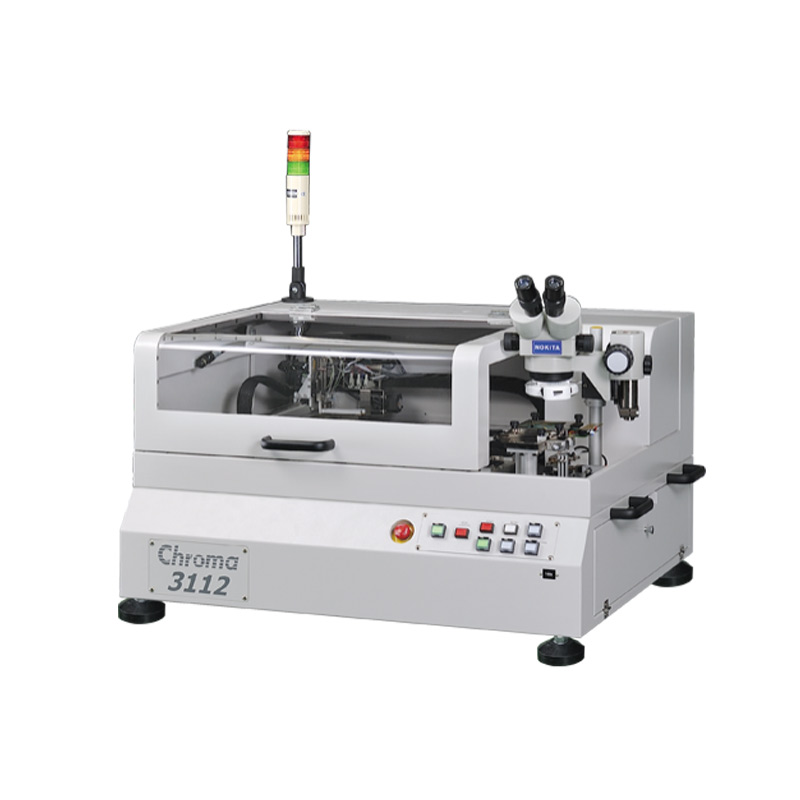

台湾chroma 晶片测试分类机 3112

Handler Dimension

1020 mm (W) x 870mm (D) x 1300 mm   (H)

Weight

Net Weight < 250kg

Power Requirement

Power Supply : Single-phase, AC 220V,   60 Hz / 1.2KVA

Compressed Air : Dry Air of 5.0 kg/cm2
( 0.5 Mpa ) or higher, constant supply ; 30l/min (ANR)

Application Die Size

5 x 5 mm to 20 x 20 mm

Test Site Number

Single site ; Dual site

Input Loader

4 manual tray

Number of sorting catagories

12 Hardware Bins (128 Software   Bins)

Probe Card Outside Dimension

4470 x 5620 mil (Max. 113.5 x 142.7   mm)

* Probe card provide by customer

Carrier Tray Outside Dimension

Standard size : 101.4 x 101.4 mm

Contact Force

Max. 10 kgf

UPH

600 @ T.T. = 7 sec. (Dual Site)

Probe Alignment (X / Y / Z / θ)

Manual alignment by test site stage

Interface

RS 232 ( Optional GPIB)

Jam Rate

1/2000 (exclude any sticky residue)

Change Over Time

< 10 min.
