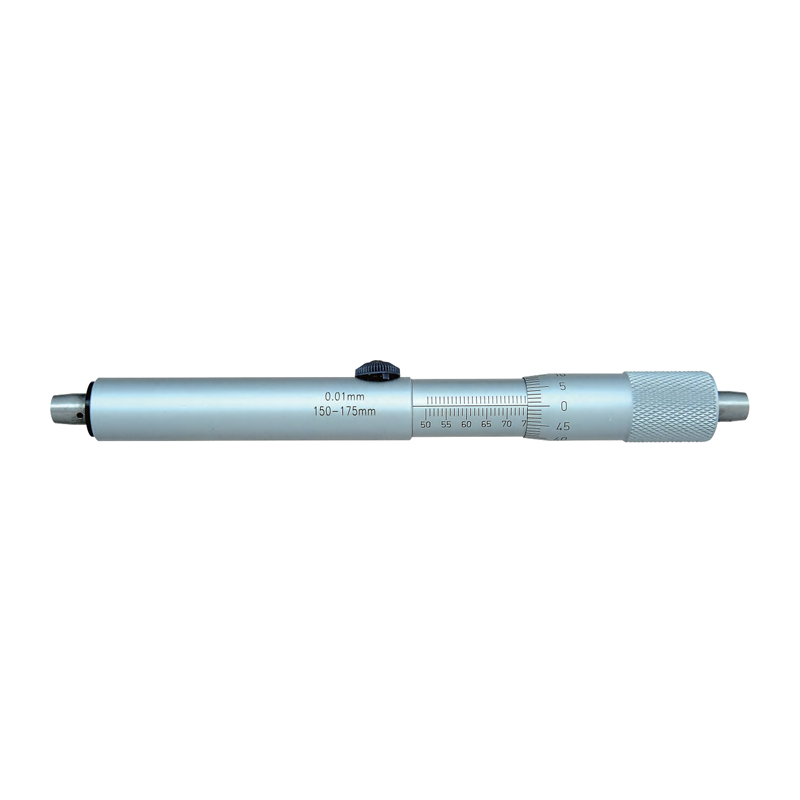

产品概述
1、硬质合金测量面,可选非硬质合金测量面。
2、钢管测杆外圆尺寸Φ16mm。
3、分辨力:0.01mm。
测量参数
货号 | 测量范围 | 精度 |
303-03-050 | 50-75mm | 0.005mm |
303-04-050 | 75-100mm | 0.005mm |
303-05-050 | 100-125mm | 0.006mm |
303-06-050 | 125-150mm | 0.006mm |
303-07-050 | 150-175mm | 0.007mm |
303-08-050 | 175-200mm | 0.007mm |
303-09-050 | 200-225mm | 0.008mm |
303-10-050 | 225-250mm | 0.008mm |
303-11-050 | 250-275mm | 0.009mm |
303-12-050 | 275-300mm | 0.009mm |
303-13-050 | 300-325mm | 0.009mm |
303-14-050 | 325-350mm | 0.009mm |
303-15-050 | 350-375mm | 0.010mm |
303-16-050 | 375-400mm | 0.010mm |
303-17-050 | 400-425mm | 0.010mm |
303-18-050 | 425-450mm | 0.010mm |
303-19-050 | 450-475mm | 0.011mm |
303-20-050 | 475-500mm | 0.011mm |
303-21-050 | 500-525mm | 0.011mm |
303-22-050 | 525-550mm | 0.011mm |
303-23-050 | 550-575mm | 0.011mm |
303-24-050 | 575-600mm | 0.012mm |
303-25-050 | 600-625mm | 0.012mm |
303-26-050 | 625-650mm | 0.012mm |
303-27-050 | 650-675mm | 0.013mm |
303-28-050 | 675-700mm | 0.013mm |
303-29-050 | 700-725mm | 0.013mm |
303-30-050 | 725-750mm | 0.014mm |
303-31-050 | 750-775mm | 0.014mm |
303-32-050 | 775-800mm | 0.014mm |
303-33-050 | 800-825mm | 0.015mm |
303-34-050 | 825-850mm | 0.015mm |
303-35-050 | 850-875mm | 0.015mm |
303-36-050 | 875-900mm | 0.016mm |
303-37-050 | 900-925mm | 0.016mm |
303-38-050 | 925-950mm | 0.016mm |
303-39-050 | 950-975mm | 0.017mm |
303-40-050 | 975-1000mm | 0.017mm |

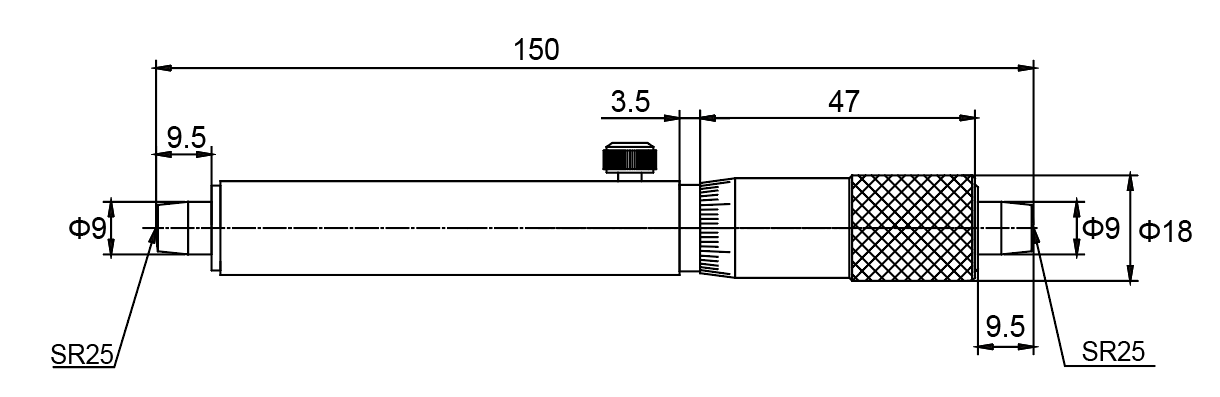

尺寸图(303-07-050)

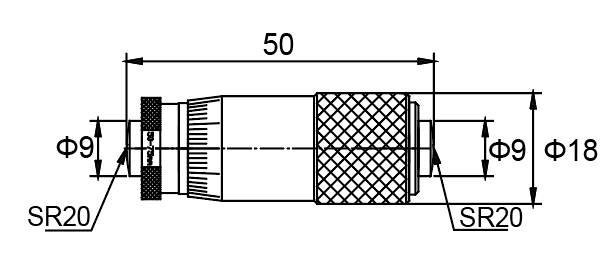

尺寸图(303-03-050)
